Keyestudio Pro Micro Geliştirme Kartı

Contents  (Hızlı Menü)

Introduction / Tanıtım

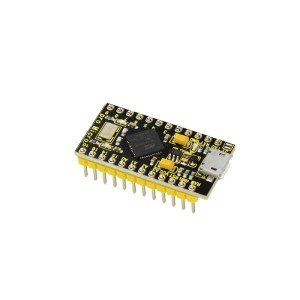

keyestudio PRO MICRO, ATMEGA32U4-MU tabanlı bir mikrodenetleyici kartıdır. Kullanımı kolay açık kaynaklı bir donanımdır.

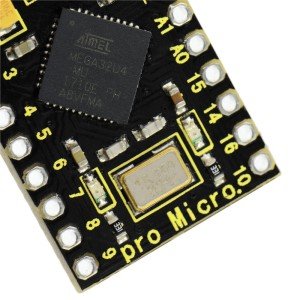

18 dijital giriş / çıkış pini (5 tanesi PWM çıkışı olarak kullanılabilir), 9 analog girişi, 16 MHz kristal osilatörü ve bir mikro USB bağlantısı vardır.
Mikrodenetleyiciyi desteklemek için gereken her şeyi içerir; başlamak için USB kablosuyla bir bilgisayara bağlamanız yeterlidir.

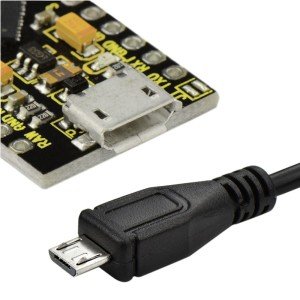

Keyestudio PRO MICRO, mikro USB bağlantısı veya RAW GND (DC 7-9V) arabirimi üzerinden çalıştırılabilir.
PRO MICRO'nun çalışma voltajının 3.3V olduğunu unutmayın. PRO MICRO, ATMEGA32U4-MU'nın dahili USB iletişimine sahip olması ve ikincil işlemci ihtiyacını ortadan kaldırması için ayrı bir USB Seri çip kullanarak diğer Arduino kartlarından farklıdır.

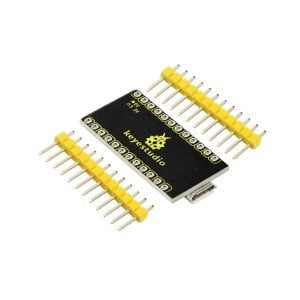

Bu Micro'yu etkileşimli hale getirmek için günlük nesnelere entegre etmek kolaydır. Fiziksel tasarımı kolaylaştırmak için, tahta pin başlıkları ile kaynaklanmaz, böylece pin başlıklarını kendiniz lehimleyebilirsiniz. Ve paket 2 adet sarı 1 * 12 2.54 düz pim ve 1m siyah mikro USB kablosu içerir.

TECH SPECS / Teknik Özellikler

Details / Ayrıntılar

• PCB Dimensions:35mm*18mm*2mm

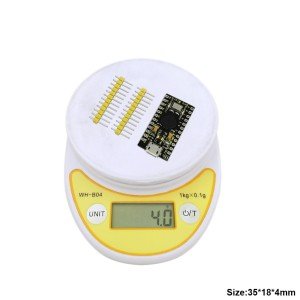

• Weight: 2.6g

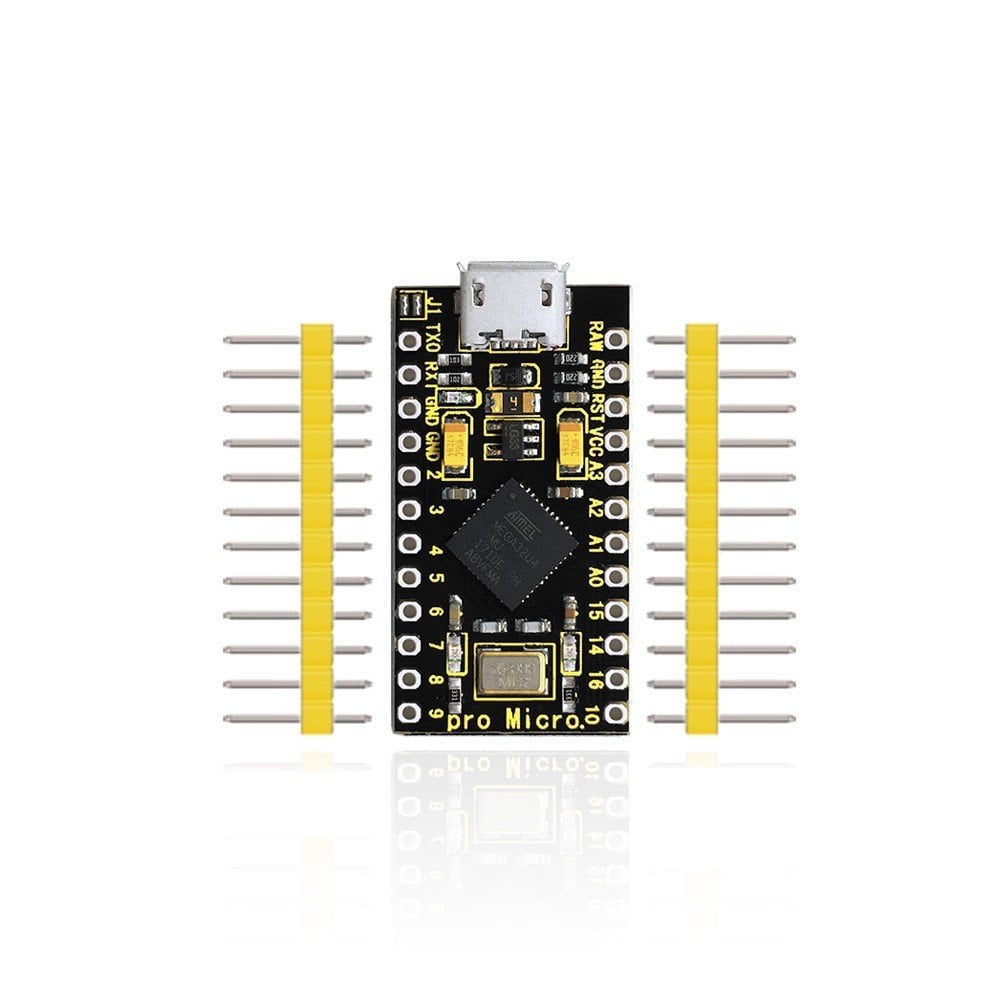

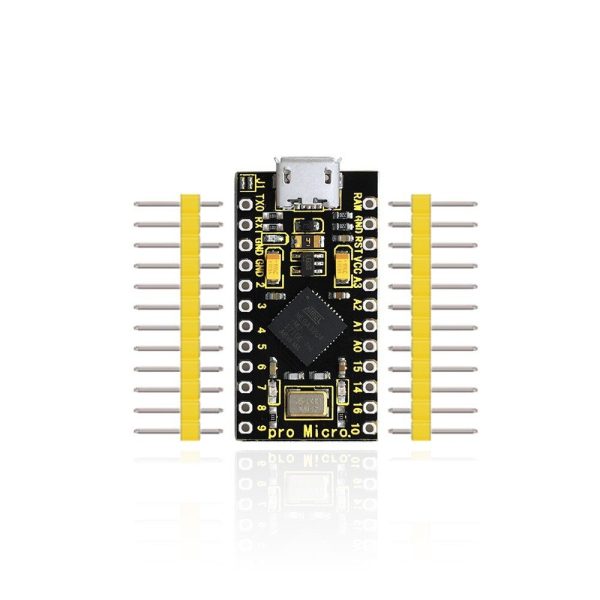

Elements and Interfaces / Elemanlar ve Arayüzler

Specialized Functions of Some Pins / Bazı Pinlerin Özel Fonksiyonları

Detailed Use with ARDUINO Software as follows / ARDUINO Yazılımı Ayrıntılı Kullanımı

Step1| Download the Arduino IDE / Arduino IDE İndirme

When you get the board, first you should install the Arduino software and driver.
We usually use the Windows software Arduino 1.5.6 version. You can download it from the link below:
https://www.arduino.cc/en/Main/OldSoftwareReleases#1.5.x
Or you can browse the ARDUINO website to download the latest version from this link, https://www.arduino.cc, pop up the following interface.

Then click the SOFTWARE on the browse bar, you will have two options ONLINE TOOLS and DOWNLOADS.

Click DOWNLOADS, it will appear the latest software version of ARDUINO 1.8.5 shown as below.

In this software page, on the right side you can see the version of development software for different operating systems. ARDUINO has a powerful compatibility. You should download the software that is compatible with the operating system of your computer.
We will take WINDOWS system as an example here. There are also two options under Windows system, one is installed version, the other is non-installed version. For simple installed version, first click Windows Installer, you will get the following page.

This way you just need to click JUST DOWNLOAD, then click the downloaded file to install it.
For non-installed version, first click Windows ZIP file, you will also get the pop-up interface as the above figure.
Click JUST DOWNLOAD, and when the ZIP file is downloaded well to your computer, you can directly unzip the file and click the icon of ARDUINO software to start it.

Installing Arduino (Windows) / Arduino Kurma (Windows)

Install Arduino with the exe. Installation package downloaded well.

Click"I Agree”to see the following interface.

Click "Next”. Pop up the interface below.

You can press Browse… to choose an installation path or directly type in the directory you want.
Then click "Install” to initiate installation.

Wait for the installing process, if appear the interface of Window Security, just continue to click Install to finish the installation.

Introduction for Arduino IDE Toolbar / Arduino IDE Araç Çubuğu Tanıtımı

Double-click the icon of Arduino software downloaded well, you will get the interface shown below.

(Note: if the Arduino software loads in the wrong language, you can change it in the preferences dialog. See the environment page for details.)


The functions of each button on the Toolbar are listed below:

Verify/Compile	Check the code for errors
Upload	Upload the current Sketch to the Arduino
New	Create a new blank Sketch
Open	Show a list of Sketches
Save	Save the current Sketch
Serial Monitor	Display the serial data being sent from the Arduino

Step2| Installing the Driver / Sürücüyü Kurma

Installed well the Arduino, the next step is to install the driver. The Arduino folder contains both the Arduino program itself and the drivers that allow the Arduino to be connected to your computer with a USB cable.

In different systems, the driver installation is similar. Here we start to install the driver on the Win7 system.
Plug one end of your USB cable into the keyestudio PRO MICRO and the other into a USB socket on your computer.
When you connect the board to your computer at the first time, right click your "Computer” —>for "Properties”—> click the "Device manager”, under Other devices, you should see the "Arduino Micro”.

Then right-click on the Arduino Micro and select the top menu option (Update Driver Software...) shown as the figure below.

Then it will be prompted to either "Search Automatically for updated driver software” or "Browse my computer for driver software”. Shown as below. In this page, select "Browse my computer for driver software”.

After that, select the option to browse and navigate to the "drivers” folder.

Once the software has been installed, you will get a confirmation message. Installation completed, click "Close”.

Up to now, the driver is installed well. Then you can right click "Computer” —>"Properties”—>"Device manager”, you should see the device as the figure shown below.

Step3| Connect the board / Kartın Bağlanması

Connect the Pro Micro board to your computer using the USB cable. The power LED should go on.

Step4| Select the Arduino Board / Arduino Kartın Seçilmesi

Open the Arduino IDE, you’ll need to click the "Tools”, then select the Board that corresponds to your Arduino.

Step5| Select your serial port / Seri Portun Seçilmesi

Select the serial device of the Arduino board from the Tools | Serial Port menu.
Note: to avoid errors, the COM Port should keep the same as the Ports shown on Device Manager.

Step6| Upload the Code / Kodu Yükleme

Below is an example code for displaying the Hello World!
Copy and paste the code to the Arduino environment IDE.

int val;
int ledpin=13;
void setup()
{
Serial.begin(9600);
pinMode(ledpin,OUTPUT);
}
void loop()
{
val=Serial.read();
if(val=='R')
{
digitalWrite(ledpin,HIGH);
delay(500);
digitalWrite(ledpin,LOW);
delay(500);
Serial.println("Hello World!");
}
}

Then click verify button to check the errors. If compiling successfully, the message "Done compiling." will appear in the status bar.


After that, click the "Upload” button to upload the code. If the upload is successful, the message "Done uploading." will appear in the status bar.

Step7| Open the Serial Monitor / Seri Monitörü Açma

After that, click the button to open the serial monitor.


Then set the baud rate to 9600, enter an "R” and click Send, that is, the computer will send the character R. When the board receives it, you should see the RX led on the board flash once, and then D13 led flash once; when keyestudio PRO MICRO successfully sends "Hello World!" to the computer, you should see the "Hello World!" is showed on the monitor, and TX led on the PRO MICRO board flash once.

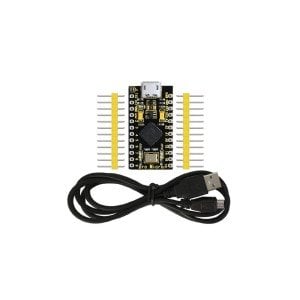

Package Includes / Paket İçeriği

• keyestudio PRO MICRO* 1pcs
• Black micro USB cable 1m * 1pcs
• Yellow Pin headers * 2pcs

Resource Links / Kaynak Linkleri

You can download the datasheet from the link:
https://drive.google.com/open?id=1xKOivVBFU1mg8Qb3xVMOlEJKOEGHV4KB

Download the Test Code:
https://drive.google.com/open?id=1YhkHLR5cNz3dmADo2Ic2iH9fGhSasPPw

You might also want to look at:
the reference for the Arduino language;

Download ARDUINO Software:
https://www.arduino.cc/en/Main/OldSoftwareReleases#1.5.x

Or download the software and driver from the link below:
https://drive.google.com/open?id=12D-JkXdNm03Qt4dlPQr3RP6OmgXqpvHc

Troubleshooting / Sorun Giderme

If you have problems, please see the troubleshooting suggestions.
